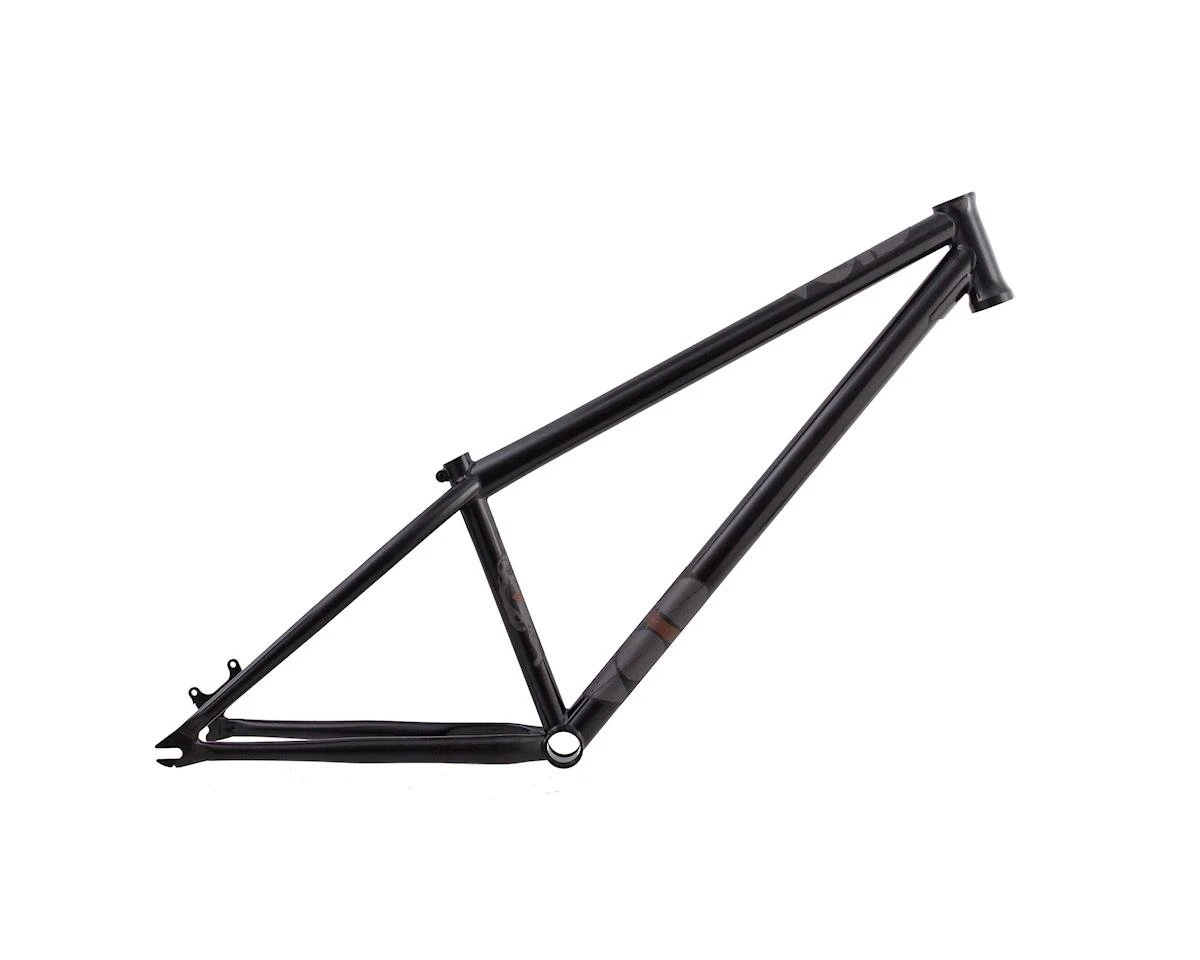

Octane One Void DJ 26″ Frame (Black) (22.2″)

Original price was: $349.99.Current price is: $95.99.

SKU: CGVYZ 774685 Categories: Bikes & Frames, Mountain Bikes

Made of environmentally friendly materials
No-Questions-Asked Returns
Multiple payment options for secure shopping with SSL
SSL encryption, absolutely safe shopping

Octane One Void 26″ Dirt Jumper Frame Description:

The Octane One Void frame is a dirt jump frame designed for jumps and pump tracks. The frame is made from custom butted 4130 chromoly tubes that are beefed up in the stress areas to keep the weight low and strength high. It is built around a standard threaded 68mm bottom bracket, making it compatible with MTB cranks and BMX cranks with Euro BB.

Features:

Custom butted 4130 CrMo frame for Dirt Jump, Street, Freeride use
Horizontal 10x135mm OL dropouts, integrated seat clamp
Adjustable caliper angle 51mm International Standard disc brake mount (185mm max)
Fits up to a 34t ring depending on crank/BB/chainline used
Recommended for use with 80-140mm travel forks (angles shown with a 140mm fork), 26″ wheels, 2.35″ tire max
Optional bolt-on derailleur hanger available separately (not included)

Size	22.2"
Color	Black
Standover Height	–
Seattube Angle	67.5°
Headtube Angle	67°
Chainstay Length	14.9"
Toptube Length	22.2"
Weight	5.6 lbs
Dropouts	–
Frame Material	4130 Chromoly
Seat Clamp	Integrated
Seatpost Size	27.2 mm
Bottom Bracket Type	Threaded Euro 68mm
Brake Mounts	Disc
Gyro Tabs	Not Drilled
Headset Type	Tapered integrated headset (IS42/IS52)
Bottom Bracket Height	–
